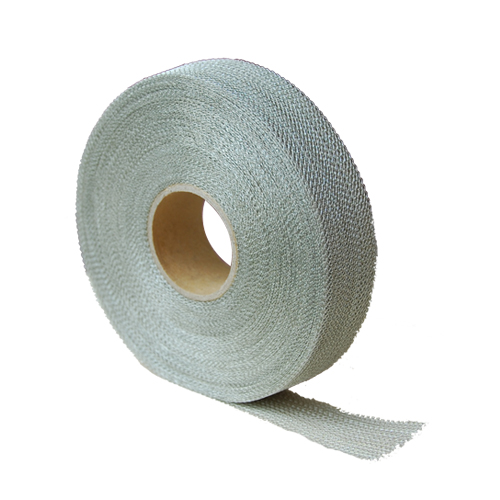

JHJ wire mesh EMI shielding tapes are constructed from a fine wire into a double layflat stocking and are available in widest range of materials and widths available according to the oder. The tape is highly flexible,light,corrosion and high temperature resistant but also stronger and more resistant to abrasion and physical damage than other tape materials. Tapes are available in widths from 6mm wide up to 1000mm wide and can be produced with a crimp to give  greater  thinkness than standard.   Application Mesh tapes are primarily used for shielding electrical and electronic cable assemblies ,for cable jointings ,grounding ,static discharge and within connector assemeblies . Normally the mesh should be applied to a cable with a 50% overlap to provide a 4 layer shield and terminated at each end by means of clamping, soldering or spot welding.   Materials of Construction –Wires JHJ  EMI shielding materials can be manufactured from any metal that can be drawn into a flatment . However the majority of shielding requirements can be satisfied by using the materials listed in the table below.

    Features & Benefits ◆Constructed from fine wire knitted into double-thickness lay-flat stocking ◆Available in a wide range of materials and sizes ◆Extremely light and durable ◆Corrosion and high temperature resistant ◆Significantly stronger than other tape materials ◆Tape widths from 6mm to 1000mm wide ◆Tapes available crimped for greater thicknesses than standard
